Site Prep: Elevator Door Penetrations

Door openings can go just around the elevator door trim or much wider.  Find out the plan for your elevator and cut penetrations accordingly.



Elevator door with the hall station on a modular elevator.

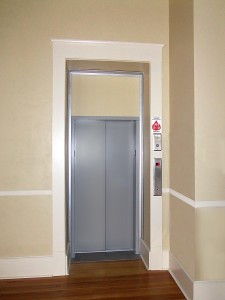

Narrow opening, hall station in building wall

Elavator door wide opening, hall station in hoistway wall

Medium opening, hall station in hoistway wall.

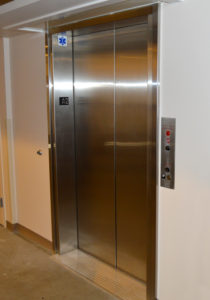

Elevator door with a wide entrance and hall station in hoistway wall.

Wide entrance with hall station in hoistway wall.

The elevator door openings can be made in a variety of ways for the benefit of the architect, interior designer, building owner and general contractor. This gives tremendous flexibility when placing the elevator in either a retrofit project or new construction.  the elevator can be placed in a variety of locations due to this flexibility.

The architect and design team will also find this feature of modular elevators as a benefit. The hall calls do not have to be placed on the modular unit itself. They can be on the building walls as well. In the pictures above you can see some of the variations.
